Zebra XSLATE R12 Rugged Tablet PC
RETHINK WHAT A RUGGED TABLET SHOULD BE
The XSLATE R12, formerly manufactured by Xplore Technologies, is a next-generation tablet designed to be the only computer you’ll need. It is one of the fastest rugged tablets on the market today and features powerful 2-in-1 capabilities with a magnetically-attached Companion Keyboard that’s always on standby and never in the way.
THE TABLET THAT TRANSFORMS TO MATCH YOUR WORK STYLE. RUGGED REDEFINED.
Think you need a desktop, laptop, and rugged tablet to excel at the tasks you complete in the office, in-vehicle, and in the field? You don’t…anymore. You just need the highly mobile, extremely flexible and always resilient XSLATE® R12 tablet PC. The transformational tablet device gives you all the high-performance features and complete computing functions you need in a single platform.
Always the Right Form. More Than Enough Flexibility

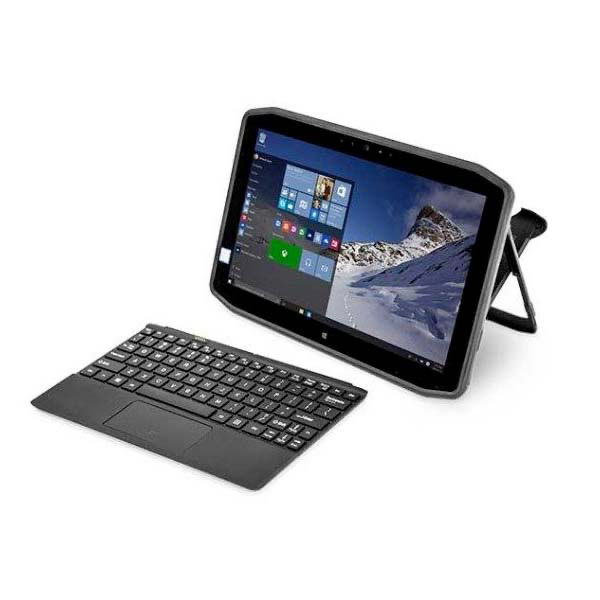

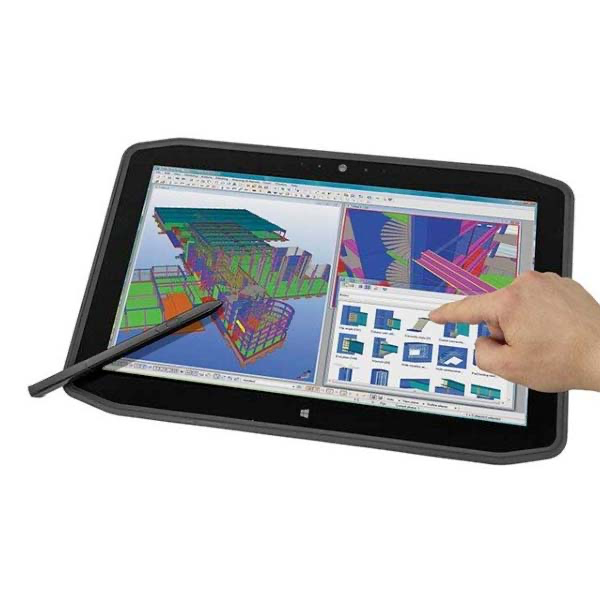

The XSLATE R12 is a next-generation tablet designed to be the only computer you’ll need. It is one of the fastest rugged tablets on the market today and features powerful 2-in-1 capabilities with a magnetically-attached Companion Keyboard that’s always on standby and never in the way. You’ll also have the clarity of one of the industry’s brightest 12.5” displays, and easy-to-use touch, pen, voice, and camera inputs.
SPECIFICATIONS
Durability
| Drop Test | MIL-STD-810G – 4’ drop tested onto plywood over concrete |
| Hazardous Environment | Class 1 Division 2 for hazardous locations |
| Ingress | IP54 |
| Internal | Magnesium-alloy internal frame |
| External | Rubberized enclosure |
System Features
| Operating System | Windows® 10 Pro 64-bit |
| Processor | • Intel® Core™ i7 vPro – 7600U – 2.8 GHz with turbo frequency to 3.9 GHz, 4 MB SmartCache, 2 cores (4 threads)• Intel® Core™ i7-7500U – 2.7 GHz with turbo frequency to 3.5 GHz, 4 MB SmartCache, 2 cores (4 threads)• Intel® Core™ i5-6200U – 2.3 GHz with turbo frequency to 2.8 GHz,w 3 MB SmartCache, 2 cores (4 threads) • Intel® Celeron® 3865U |
| Memory | • 4GB (Celeron® 3865U only) • 8GB |
| Storage Options | • 64 GB SSD** (M.2 SATA only) • 128 GB SSD (M.2 SATA or PCIe) • 256 GB SSD (M.2 SATA or PCIe) • 512 GB SSD (M.2 SATA or PCIe) • 1 TB SSD*** (M.2 PCIe only)* 64 GB M.2 SATA SSD only available with 3865U processor configuration ** PCIe drives only available with 7500U & 7600U processor configurations |
| Display | • 12.5” Wide Viewing Angle Display • Full-HD Resolution (1920 x 1080) – 1000 Nit Display Brightness – Anti-Smudge & Anti-Reflective – View Anywhere® Display • Corning® Gorilla® Glass 3 • Capacitive 10-Point Touch • Wacom Digital Pen Input • Standard user replaceable anti-glare screen protector – 3H hardness |
| Graphics | • Intel HD Graphics 620 for i7-7500U, i7-7600U • Intel HD Graphics 610 for Celeron® 3865U • Intel HD Graphics 520 for i5-6200U |
| Camera | • 8 MP rear camera • 2 MP front camera |
| Integrated Communications | Intel® Dual Band Wireless-AC 8260 Wi-Fi plus Bluetooth® 4.2 • Optional Internal Wireless (1 expansion slot) – Sierra Wireless EM7455 (NA and EU) 4G LTE with GNSS (GPS + GLONASS + Beidou Verizon PNTM certified4 or – Sierra Wireless EM7511 (NA) LTE-Advanced with GNSS receiver (GPS + GLONASS + BeiDou + Galileo) AT&T FirstNet Ready and Verizon PNTM certified or – Sierra Wireless EM7430 (APAC) 4G LTE with GNSS (GPS + GLONASS + Beidou)4 or – Navisys Technology (u-blox) GPS with SBAS (WAAS, EGNOS and MSAS)• Pass-Through antenna for WWAN, WLAN and GPS • Pass-Through antenna for WWAN, WLAN and GPS |
| Ports | • Docking connector • USB 3.0 port • HDMI port • 3.5 mm audio output (stereo out, mono in) • Micro-SIM Card Slot (3FF)• Micro-SDHC port |
| Integrated Options | • Optional 1D/2D Barcode Reader via SlateMate® • Optional 13.56 MHz HF RFID with read/write capability via SlateMate® • Optional RS232 True Serial Port via Dongle • Optional RJ45 Gigabit Ethernet Port via Dongle • Optional Integrated CAC/Smart Card Reader |
| Battery Life & Power | • Battery operation – Standard battery: up to 9 hours1 • Battery charge time – Standard battery: 2.75 hours with system off2 • Standard bridge battery (1 minute swap time) – Hot swap battery feature comes standard • Input Voltage: 19V with AC Adapter |
| Dimensions / Weight | • 12.93” x 8.17” x .75” w(328.5 mm x 207.5 mm x 19 mm) • 2.95 lbs (1.34 kg)3 |
| Security | • Integrated Fingerprint Reader • Trusted Platform Module (TPM) 2.0 • Optional CAC / SmartCard reader |
| Audio | • Intel® High Definition Audio • Realtek® HD Codec • RealTek noise cancellation • Multi-directional array microphone – 3 microphones (2 front facing array mic’s and 1 rear facing mic) • 2 Integrated speakers |
| Status Indicators | • Power/Battery Status • Camera Active • SSD Activity |
