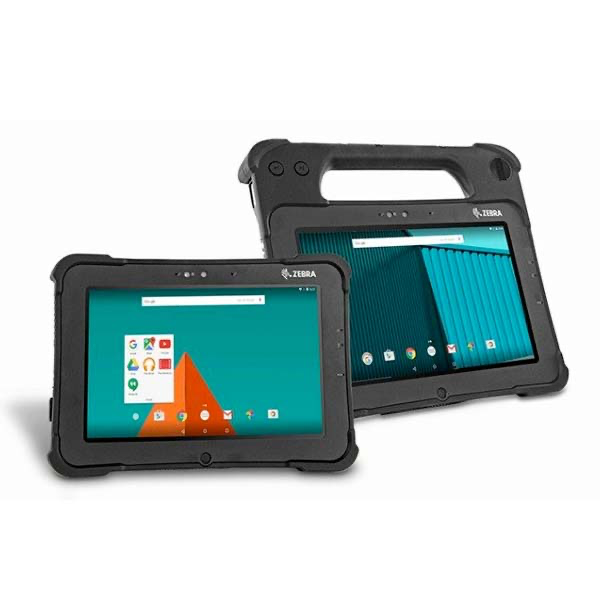

ZEBRA L10 RUGGED TABLET PLATFORM
A VERSATILE RUGGED TABLET PLATFORM RUGGED TO THE CORE
The Zebra L10 rugged platform, formerly manufactured by Xplore Technologies, offers a variety of tablet configurations and a shared accessory ecosystem that sets a new standard in office, vehicle and field-based computing.

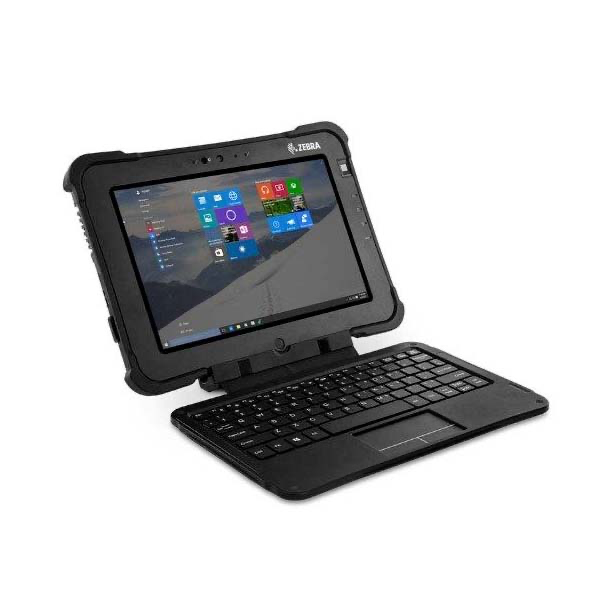

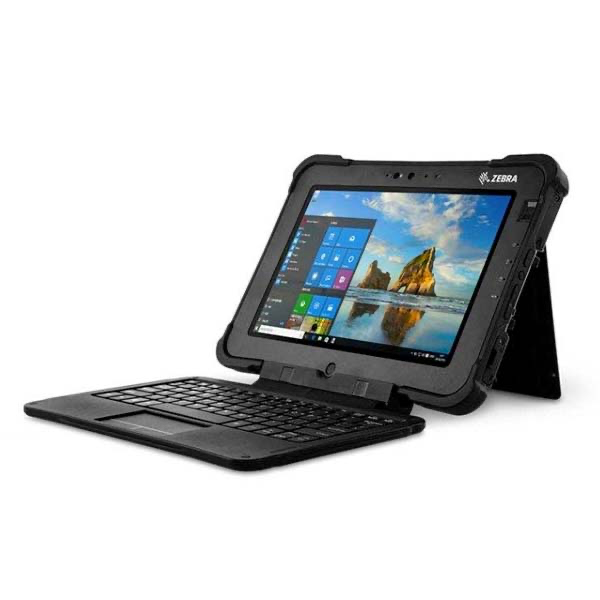

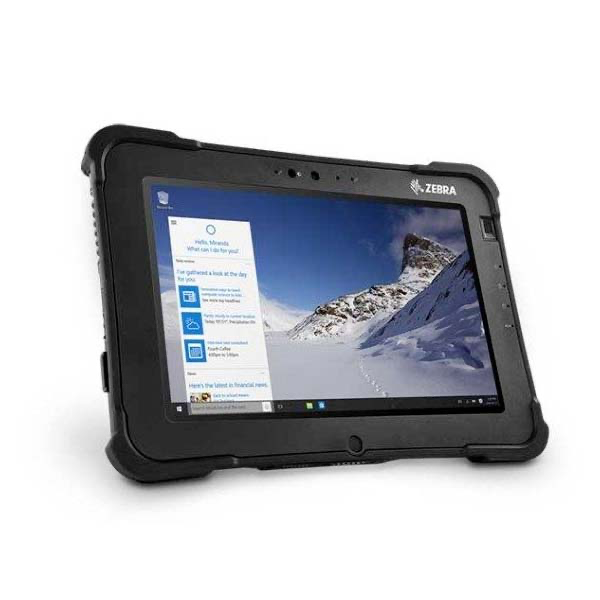

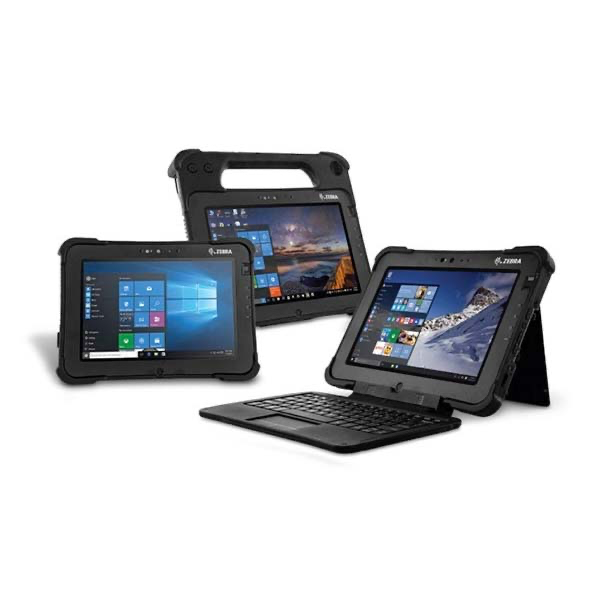

THE ULTIMATE XPAD, XBOOK 2-IN-1 AND XSLATE 10.1 INCH ‘GO-ANYWHERE’ TABLETS
Put the power of mobile data in the hands of workers in your most demanding environments with Zebra’s L10 Windows Rugged Tablet family. Three models meet the needs of workers out in the field in energy, mining, utilities, telecommunications, construction, public safety and government — as well as in warehouses and manufacturing plants. The rugged go-anywhere design is at home indoors, outside, in freezers, sub-zero cold and extreme heat, in forklifts, trucks and other vehicles — and even in bright sunshine.
L10 XPAD/XBOOK/XSLATE SPECIFICATIONS
Physical Characteristics
| Dimensions | XSLATE: 11.0 in. L x 7.7 in. W x 0.88 in. D 280.8 mm L x 195.2 W mm x 22 mm D XPAD: 11.0 in. L x 10.0 in. W x 0.88 in. D 280.8 mm L x 255.9 W mm x 22 mm D XBOOK: 11.0 in. L x 8.3 in. W x 2.36 in. D 280.8 mm L x 210.8 W mm x 60 mm D |
| Weight | XSLATE: 2.8 lbs/1.3 kg2 XPAD: 3.1 lbs/1.4 kg2 XBOOK: 4.63 lbs/2.1 kg2 |
| Frame | Magnesium alloy internal frame with external elastomer corner bumpers |
| Display | 10.1 in. 2K resolution display WUXGA 1920 x 1200 (16:10) – Standard 500 Nit capacitive – View Anywhere® 1000 Nit capacitive – View Anywhere 1000 Nit with active Wacom® digitizer Corning® Gorilla® Glass 3 Capacitive 10-point touch Contrast ratio = 800 : 1 Wide viewing angle ±89° Standard user replaceable anti-glare screen protector — 3H hardness Auto-sensing standard, glove and wet touch Night vision mode supported on Active View Anywhere Display only |
| Graphics | N4200 CPU – Intel® UHD Graphics 505 Core i5 & i7 CPUs – Intel® UHD Graphics 620 |
| Battery Life & Power | Standard battery: up to 10 hours3 Extended battery: up to 27 hours3 Battery charge time: – Standard battery: 2.75 hours with system off4 – Extended battery: 3.25 hours with system off4 Standard bridge battery (1 minute swap time) – Hot swap battery feature comes standard Input Voltage: 12-20V, AC Adapter: 19V |
| Ports/Connectivity | Docking connector (2) USB 3.0 ports USB Type-C port (USB 2.0, USB 3.0, Display Port out) 3.5 mm audio output (stereo out, mono in) RJ-45 ethernet port Dual Nano SIM (4FF) Micro-SDXC |
| Expansion Slot | Micro-SDXC |
| Integrated Options | NFC Optional 1D/2D barcode reader (XPAD only) Optional True RS232 serial, or Optional HDMI-In, or Optional CAC / Smart Card reader, or Optional UHF RFID reader (AEI) |
| Rugged Keyboard | Included with XBOOK: backlit; IP65; 3.2 ft./1 m drop specification; kick strap/stand (rugged keyboard is optional for the XSLATE and XPAD) |
| Security | Integrated fingerprint reader Trusted Platform Module (TPM) 2.0 Optional CAC / Smart Card reader |
| Status Indicators | System status, battery status, camera active, SSD activity |
| Audio | Intel High Definition audio Realtek® HD Codec RealTek noise cancellation Multi-directional array microphone – 2 microphones (2 front facing array mic) XPAD: 1 front facing speaker XSLATE/XBOOK: 1 rear facing speaker |
Performance Characteristics
| Operating System | Windows® 10 Pro 64-bit |
| Processor | 8th Generation Intel® Core™ i7 vPro™ processor – 8650U (LPDDR3, 1.90 GHz with turbo frequency to 4.20 GHz)8th Generation Intel® Core™ i5 vPro™ processor – 8350U; (LPDDR3, 1.70 GHz with turbo frequency to 3.60 GHz)8th Generation Intel® Core™ i5 processor – 8250U; (LPDDR3, 1.60 GHz with turbo frequency to 3.40 GHz)Intel® Pentium® processor N4200; (LPDDR4, 1.10 GHz with turbo frequency to 2.50 GHz) |
| Memory | 4 GB (Pentium N4200 only) 8 GB (Pentium N4200 & Core i5 8250U only) 16 GB (Core i5 vPro 8350U & Core i7 vPro 8650U only) |
| Storage Options | N4200 CPU: 64 GB SATA SSD, 128 GB SATA SSD, 256 GB SATA SSD, 512 GB SATA SSDCore i5 & i7 CPUs: 128 GB PCle SSD, 256 GB PCIe SSD, 512 GB PCIe SSD, 1 TB PCIe SSD |
Request information about the Product
Get in touch with us to learn more about this product’s features, pricing, and availability. A MIST representative will respond promptly to assist you.
