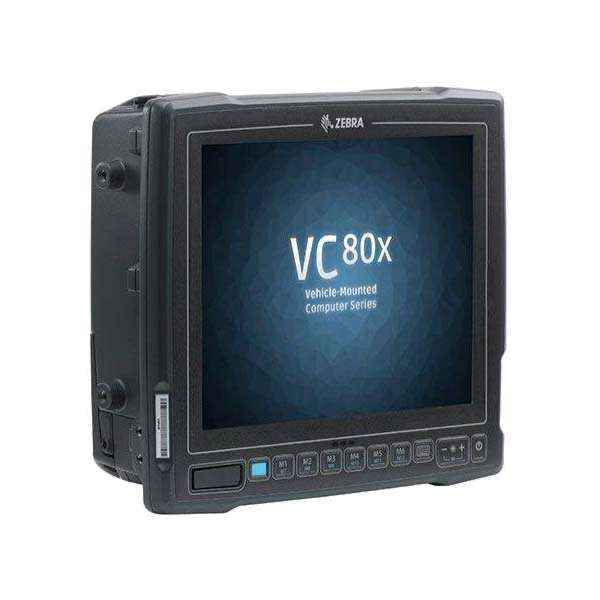

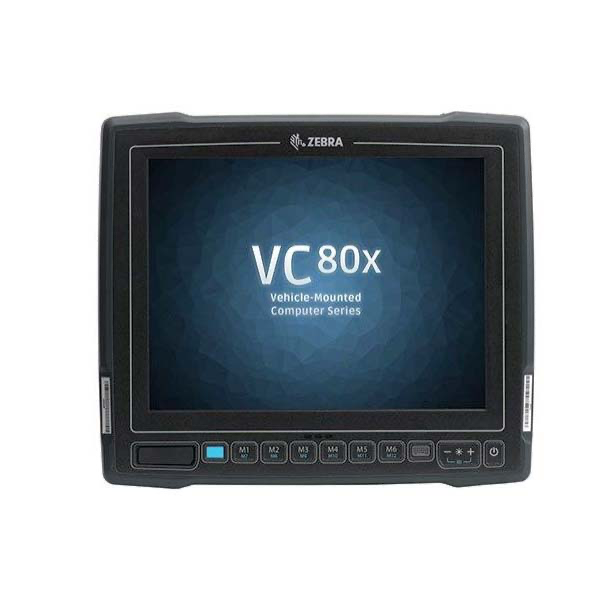

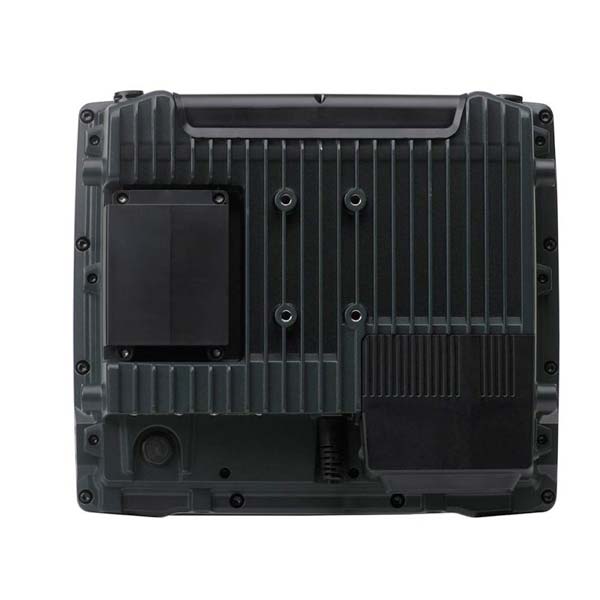

VC80 Vehicle-Mounted Computer Series
PUT THE POWER OF ANDROID IN YOUR WAREHOUSE VEHICLES
With the VC80x, you can easily migrate your material handling vehicles to the next-generation platform for warehouse mobility. Based on Android, the VC80x delivers a well-proven mobility platform with guaranteed security support you can count on.
ANDROID COMPUTER FOR VEHICLE OPERATORS
The VC80x fits in virtually any warehouse or material handling vehicle and features the Android operating system. Programmable keys simplify the most complex operations and the field-replaceable touchscreen, or optional keyboard can be used with even the thickest gloves.
SPECIFICATIONS
Physical Characteristics
| Dimensions | 10.9 in. W x 9.4 in. H x 3.5 in. D 276 mm W x 238 mm H x 90 mm D |
| Weight | 8.1 lbs./3.7 kg |
| Keyboard Options | External QWERTY and AZERTY, optional L-mount |
| Power | Internal power supply 12-48V nominal, designed for forklift power |
| UPS | Rechargeable UPS battery for operation during power loss |
| Display | 10.4 in. color XGA (1024 x 768) LCD; 24-bit color depth; choice of 400 or 1,000 NITs; LED backlight |
| Touchscreen | Resistive touchscreen with passive stylus or finger operation Freezer version: integrated touchscreen heater evaporates external condensation when moving out of and into freezers |
| Keys | Six (6) programmable macro keys; volume; brightness; blue key for 2nd level functions; on/off key |
| Interface Ports | Standard sealed and secured connectors: 2 RS-232 serial ports; 1 standard USB port; 1 powered USB port; 1 3.5 mm audio jack; optional Ethernet port via an adapter |
| Indicators | Power LED; warning LED; blue key status LED |
| Scanner Support | Handheld scanners and imagers connected via USB, RS-232 or Bluetooth; SSI support for DS36xx Series scanners and RS6000 Bluetooth scanner |
| Mounting | Quick-release mount; standard RAM mounts; adapters for legacy vehicle computer mounts |
Performance Characteristics
| CPU and RAM | Qualcomm 8056 1.8 GHz hexa-core 64 bit with power optimization, with 4 GB RAM |
| Operating System | Android 8.0 (Oreo) – AOSP; GMS – select configurations |
| Mass Storage | 32 GB eMMC (pSLC) |
| Software (pre-licensed and pre-loaded) | DataWedge with SSI scanner support; Workforce Connect PTT Express; Ivanti Velocity powered by Wavelink |
| Optional Software | Workforce Connect PTT Pro, SOTI MobiControl |
