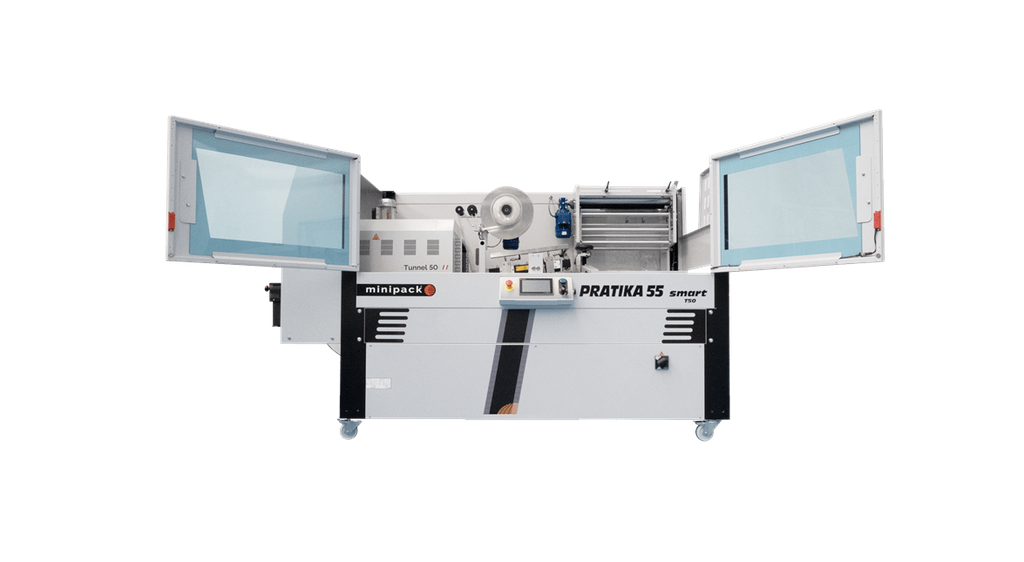

minipack Pratika 55 Smart T50 Integrated Tunnel Automatic Packaging Machine
PRATIKA 55 SMART T50: Small in design, big in performance with servo technology.
The PRATIKA 55 Smart T50 is an automatic shrink wrapping machine that stands out for its highly efficient tunnel, designed to significantly increase the production capacity. This tunnel is fully adjustable via PLC, allowing for precise and customized control of the packaging process. The machine is compact and optimized to deliver high performance, combining advanced technology and ease of use.
What are the advantages of this new packaging machine?
- Brushless sealing bar servomotor
- Electric (non-pneumatic) feeding system
- Color touch screen control panel
- Compact (3.3 m²)
- Standard conveyor belt approach
- Vertical photocell for product detection included
- Single-chamber shrink tunnel 450x920x240 (LxPxH)
- Increased productivity
TECHNICAL FEATURES
| Electrical supply | 400V 50/60Hz 3Ph + inverter |
| Maximum installed power | 9kW (400V) |
| Maximum electrical consumption | 15A (400V) |
| Hourly production | 0-1200 p/h |
| Maximum roll size | 250x600 (ØxL) |
| Maximum product dimensions | 400W 420L 120H |
| Conveyor belt height | 870 mm (Standard on casters) Optional feet kit |

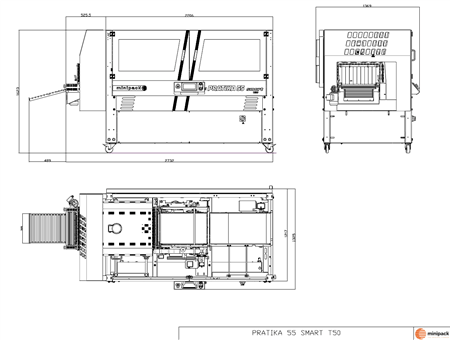

| Machine dimensions (Doors open) | 2240x1625x2732 (WxLxH) mm |
| Machine dimensions (Doors closed) | 1325x1625x2732 (WxLxH) mm |
| Machine packaging dimensions | 1440x1990x2950 mm |
| Weight (Net/Gross) | 730/865 kg |
| Machine color | RAL7035 |
