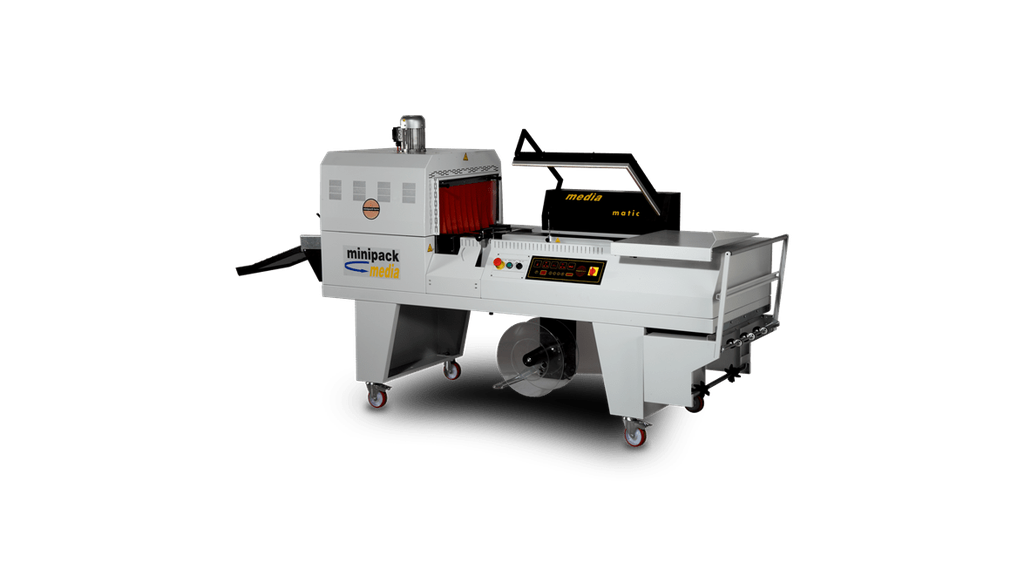

minipack Media Semi-Automatic 540x400 mm Packaging Machine
Efficient & Versatile Monoblock Wrapping Machine
MEDIA is the latest piece of Minipack®-Torre range of semi-automatic modular angular wrapping machines, presenting a monoblock structure that distinguishes it from other proposals. Specifically, the retracting tunnel -equipped with a speed, height and temperature adjustment system- is fully integrated within the welding unit, making the structure of the packaging machine versatile and compact.
MEDIA presents an enviable series of high-profile technical features, including electronic adjustment of welding time and the presence of Teflon-coated blades, which guarantee the complete absence of fumes. At the same time, this angular wrapping machine provides a complete standard equipment: sealing bar and motorized scrap winder supplied. The STEEL IT version of MEDIA is ideal for the needs of the food and pharmaceutical industries.
In short, MEDIA is a perfect packaging machine for all the companies that Think Big!
TECHNICAL FEATURES
| Electrical power supply | 208V 60Hz 230V 50Hz 400V 50Hz 400V 50/60Hz |
| Phase | 3Ph |
| MAX power installed | 6,5 kW (208V) 6,3 kW (230-400V) |
| Hourly output | 750 p/h |
| Maximum current | 19 A (208V) 17 A (230V) 10 A (400V) |
| Dimensions of sealing bars | 540x400 mm |
| MAX Reel Dimensions (diameter) | 350 mm |
| MAX Reel Strip Dimensions (width) | 600 mm |
| 875 mm | |
| Machine weight (Net/Gross) | 287/343 kg |
| Tunnel infeed dimensions | 440x240 mm |
| Dimensions with the sealing frame open | 2780x730x h.1400 mm |
| Dimensions with the sealing frame closed | 2780x730x h.1400 mm |
