Marques MOD. Logistics PLP

4 CELLS WITH RAMP AND WHEELS

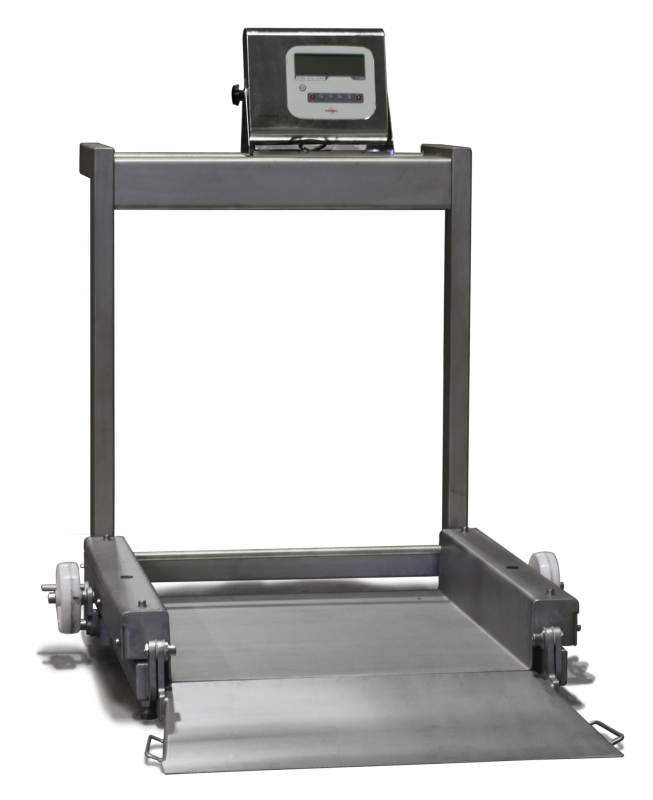

Mobile platform suitable for weighing rolling loads, carts or similar, since the ground clearance of the weighing zone is very low, only 55 mm, and the access ramp has a very reduced slope

This platform model responds to the needs of weighing inside manufacturing facilities or warehouses, benefiting from its great mobility

Wheels with 2 positions:

- weighing position, the platform sits on the ground in 4 leveling feet to allow weighing

- transport position, the wheels mounted on swivel axles allow you to raise, with your hand or foot and without great effort, the entire structure about 50 mm

The access ramp is foldable with rotation around a fixed axis which allows its positioning on the platform for moving the equipment

Fully built-in stainless steel AISI 304 polished matte (frosted) with 4 cells that comply with IP68 protection, with CE approval certificate

The platform is supported on the cells through a kneecap system that ensures a return to the initial position counteracting all lateral efforts. The connection of the cells is carried out in a polyester mixing box reinforced with fiberglass, which complies with IP 66, from which I left the connection cable for the display

CE Approval Certificate No.º E99-00-0003

Platforms compatible with our entire range of Displays

Equipment subject to CE Verification
