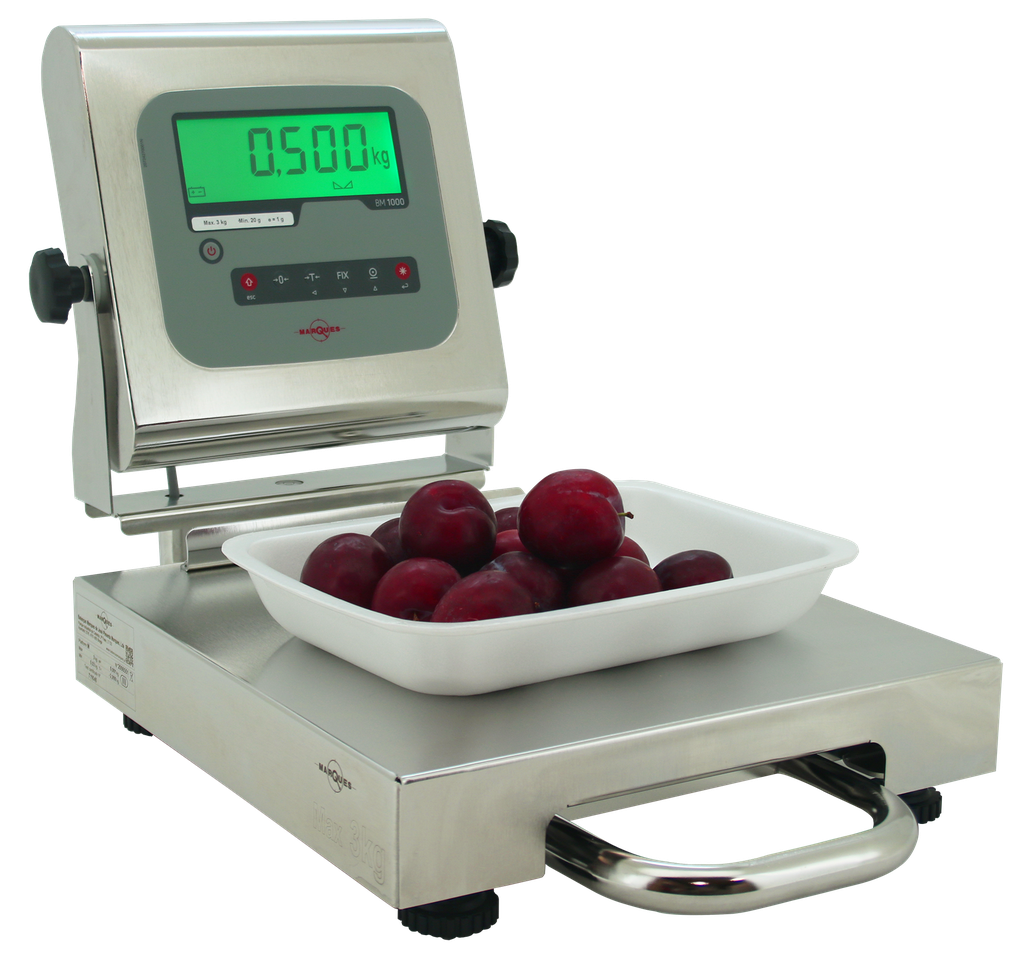

Marques Complete Scale Model MC 30 SS

SINGLE-CELL INDUSTRIAL PLATFORM WITH BM1000P DISPLAY WITH MULTICOLOR LCD

The MC 30 SS model from Balanças Marques is a complete scale developed with the weighing and packaging of the products of your industry.

To create this complete scale, we have joined our M 30 x 30 industrial platform with our BM1000BAT display. A display that, in addition to the usual tare and printing functionalities, also has, in the MC 30 SS model, a special function that increases the speed and efficiency of packaging products with previously defined weight.

With a multi-color LCD, the backlight color of the display of this scale automatically changes color, according to the weight and tolerance limits set by you.

* Below the weight tolerance limit, the display color is yellow.

* Within the weight tolerance limit, the display color is green.

* Above the weight tolerance limit, the display color is red.

Thus, with this scale, when packing your products, you only need to pay attention to the color of the display to know if the packaging already has the appropriate weight.

The BM1000 BAT display of our MC 30 SS scale has the following technical characteristics:

- Multicolor LCD viewer with 6 digits of 25 mm..

- 7-key multifunction keyboard: ON/OFF, BRUTO/NETO, ZERO, TARA, PRINT and TOTAL.

- Automatic and cumulative unlocking.

- Fixing the tare.

- Task Weight Function, Parts Count.

- RS 232 output, for connection to Computer or Printer.

- Possibility of connecting to the weight repeater.

- Multiple communication protocols.

- Several pre-configured stubs.

- IP 67 protection.

- Internal battery, with autonomy of 60 hours.

- CE Approval Certificate.

- Built entirely in Stainless Steel.

In turn, the single-cell industrial platform M 30 x 30 has the following technical characteristics:

- Dimensions: 30 x 30 cm.

- Totally in Stainless Steel.

- Backrest to facilitate weight centering.

- Removable top and backrest for platform cleaning.

- 4 adjustable feet that allow its leveling and installation on the ground or counter.

- Static overload limiter in the load cell.

- 4 limiters, in the corners of the platform, which allow you to support over loads greater than the maximum capacity.

- Load cell with IP 67 protection and CE approval certificate.
