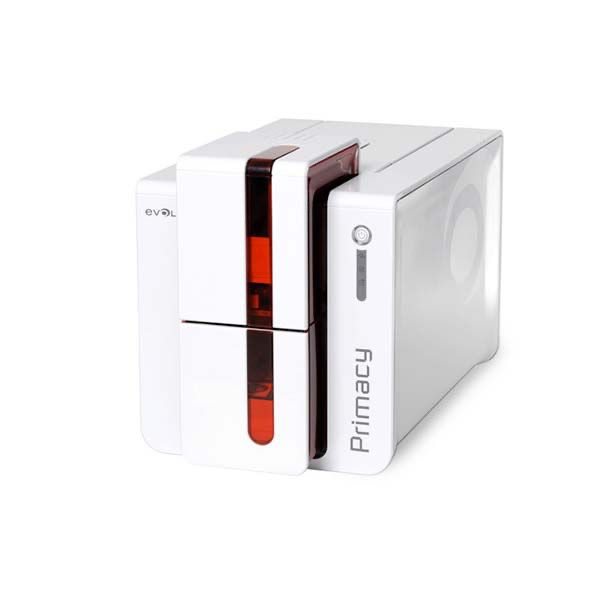

EVOLIS PRIMACY ID CARD PRINTER

Speed and versatility

The Primacy printer is ultra-fast, powerful, and efficient. Using advanced encoding technologies, this office printer is the ideal solution for printing personalized cards, from the simplest to the most secure.

SPECIFICATIONS

General features

• Direct-to-card dye-sublimation/Resin thermal transfer
• Single-sided printing, edge-to-edge
• Standard 300 x 300 dpi resolution
• Customizable 300 x 600 dpi resolution (color and monochrome printing) or 300 x 1200 dpi resolution (monochrome printing only)
• Colors available: fire red & brilliant blue
• Dual-sided Card Lamination Module (CLM) as an option1
• 32 MB memory (RAM) standard – optional 64 MB1

Printing performances

Single side:

• Color (YMCKO): 190 – 225 cards/hour
• Monochrome: 800 – 1000 cards/hour

Dual side:

• Color (YMCKO-K): 140 cards/hour

Interfaces

• USB (1.0, 1.1, 2.0, 3.0), cable supplied
• Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)
• 802.11b/g wireless connection on the Wireless range

Cards management and specifications

• Feeder capacity: 100 cards (0.76 mm – 30 mil)
• Output hopper capacity: 100 cards (0.76 mm – 30 mil)
• Open output hopper as an option for collecting cards one by one
• Reject tray/output hopper capacity at the back: 50 cards (0.76 mm – 30 mil)
• Card thickness: 0.25 to 1.25 mm (10 to 50 mil), gauge adjustment (0.25 mm – 10 mil only for monochrome printing)
• Card types: PVC cards, composite PVC cards, PET cards, ABS cards1, special varnished cards1
• Card format: ISO CR80 – ISO 7810 (53.98 mm x 85.60 mm)

Additional encoding modules

• Available modules:
  • Magnetic stripe encoder ISO 7811 HiCo/LoCo, JIS2
  • Smart contact station ISO 7816-2
  • Contact smart card encoder – PC/SC, EMV 2011-1
  • Contactless smart card encoder – ISO 14443A, B, ISO15693, MIFARE, DESFire, HID iCLASS, UHF (standard compliance: EPC C1 Gen2 / ISO18000-6C ETSI EN 302 208 or FCC part 15.247)
  • Other specific encoders upon request
• Internal USB or IP ports
• USB encoding over IP through additional USB Net Server module, upon request
• Options can be combined
• Factory-installed or installed on site

Safety

• Support for Kensington® security lock
• Data encryption for magnetic encoding1
• Locking system as an option1
