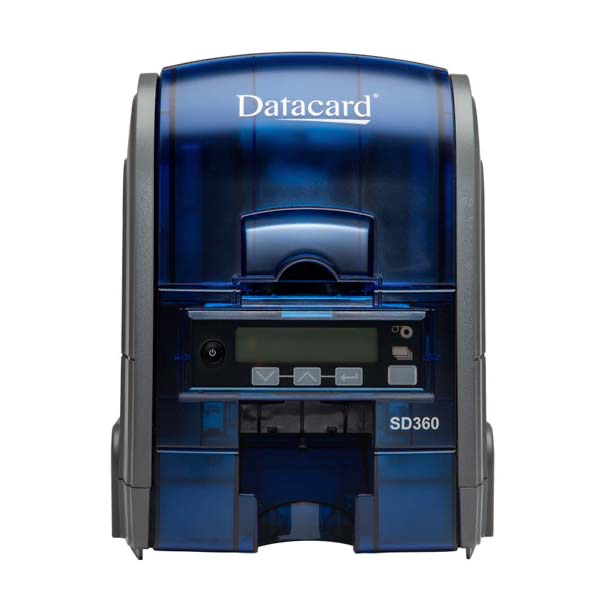

Entrust Datacard SD360 ID Card System

The Best-in-Class Two-Sided ID Card and Badge Printer

Increase productivity and save work by issuing secure, two-sided ID cards and badges. Get the ideal issuance for your small- to medium-sized businesses, schools, clubs, and hospitals.

The Entrust Datacard SD360 is an economical dual-sided printer designed for small to medium-sized card programs. With impressive features including a magnetic stripe encoding upgrade and TrueMatch technology for clear, bright colors, the SD360 is a great solution for businesses, organizations, and front desks.

Tech Specs

Entrust SD360 Direct-to-card Printer (formerly Datacard® SD360™ card printer)

Print Technology

• Direct-to-card dye-sublimation/resin thermal transfer

Print Capabilities

• One- or two-sided, edge-to-edge printing
• Full-color and monochrome printing capability
• Alphanumeric text, logos, and digitized signatures; 1D/2D bar code images
• Printer pooling/sharing (available soon)
• UV printing

Print Resolution

• 300 dots per inch, 256 shades per color panel
• High-quality mode: 300 x 600 dots per inch; enhanced text, bar code and graphics printing
• 300 x 1200 dots per inch; enhanced text and bar code

Print Speed**

• Full-color: up to 200 cards per hour, one-sided (YMCKT*); up to 155 cards per hour, two-sided (YMCKT-K)
• Monochrome: up to 830 cards per hour, one-sided (black HQ)

Card Capacity

• Automatic feed: 100-card input for 0.030 in. (0.76 mm) cards; 25-card output standard
• Manual feed: 1-card input; 5-card output for 0.030 in. (0.76 mm) cards (SD260)

Physical Dimensions

• L 21.2 in. x W 6.9 in. x H 8.8 in. (53.9 cm x 17.5 cm x 22.4 cm)

Weight

• 12.0 lbs (5.4 kg) (depending on options)

Operating System

• Windows® 7 (32 and 64 bit)
• Windows® 8 (32 and 64 bit)
• Windows® 10 (32 bit and 64)

Environmental

• Biodegradable supply cores made with EcoPure® additive
• Recyclable enclosure plastics (marked with recycle symbol per
• Resin Identification Code)
• Recyclable packaging

Included with Printer

• Printer driver CD, Quick Install Guide and warranty
• Complimentary TruCredential™ Express identification software
• Cleaning pen
• Cleaning roller spindle
• USB cable
• Power supply
• Power cord (region-specific)

*Ribbon type and number of panels; Y=Yellow, M=Magenta, C=Cyan, K=Black, T=InlineTopcoat, HQ=High Quality, IF = Fluorescent. Open Card printer not available in the North America Region.

**Print speeds will vary depending on ribbon type used and image being printed.
